LP6460
General Description
The LP6460A contains an independent 600KHz constant frequency, current mode, PWM step-down converters. The converter integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The LP6460A is ideal for powering portable equipment that runs from a 2cell Lithium-Ion (Li+) battery. The converter can supply 2000mA of load current from a 3.5V to 16V input voltage. The output voltage can be regulated as low as 0.6V. The LP6460A is available in a SOT23-6 package and is rated over the -40℃ to 85℃ temperature range.
Applications
Portable Media Players
Cellular and Smart mobile phone
PDA/DSC
GPS Applications
Features
Input Voltage Range: 3.5V to 16V
Output Voltage Range: 0.6V to 12V
2000mA Load Current on Channel
Up to 96% Efficiency
<6uA Shutdown Current
600KHz Switching Frequency
Short Circuit Protection
Thermal Fault Protection

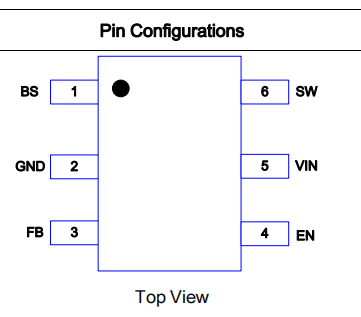

SOT23-6 Package
RoHS Compliant and 100% Lead (Pb)-Free
