■ General Description
LN8120 is a fully integrated, high– efficiency 2A  synchronous rectified step-down converter. The LN8120 operates at high efficiency over a wide output current load  range. This device offers two operation modes, PWM control  and PFM Mode switching control, which allows a high  efficiency over the wider range of the load. The LN8120 requires a minimum number of readily  available standard external components and is available in  an 6-pin SOT23 ROHS compliant package.
■ Applications
 Distributed Power Systems
 Digital Set Top Boxes
 Flat Panel Television and Monitors
 Wireless and DSL Modems
 Notebook Computer
■ Features
 High Efficiency: Up to 96%
 500KHz Frequency Operation
 2A Output Current
 No Schottky Diode Required
 4.5V to 20V Input Voltage Range
 0.6V Reference
 Slope Compensated Current Mode Control for  Excellent Line and Load Transient Response
 Integrated internal compensation
 Stable with Low ESR Ceramic Output Capacitors
 Over Current Protection with Hiccup-Mode
 Thermal Shutdown
 Inrush Current Limit and Soft Start

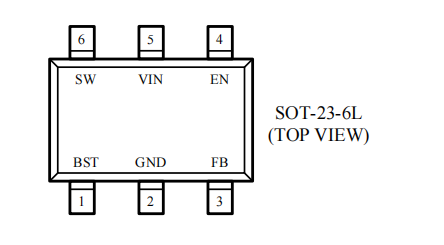

 Available in SOT23-6 Package
 -40°C to +85°C Temperature Range
