■ General Description
LN5016 is a current mode monolithic buck switching  regulator. Operating with an input range of 4.5V~40V, the  LN5016 delivers 1.5A of continuous output current with two  integrated N-Channel MOSFETs. The internal synchronous  power switches provide high efficiency without the use of an  external Schottky diode. At light loads, the regulator operates  in low frequency to maintain high efficiency and low output  ripple. Current mode control provides tight load transient  response and cycle-by-cycle current limit.  The LN5016 guarantees robustness with short-circuit  protection, thermal protection, current run-away protection,  and input under voltage lockout.  The LN5016 is available in 6-pin SOT23-6L package,  which provides a compact solution with minimal external  components.

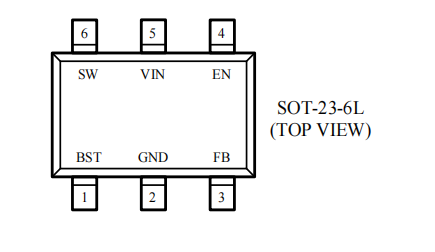

■ Package
 SOT23-6L
■ Features
 4.5V to 40V Input Voltage Range 1.5A output current
 High Efficiency: Up to 95%
 No Schottky Diode Required
 0.8V Reference
 Slope Compensated Current Mode Control for  Excellent Line and Load Transient Response
 Integrated internal compensation
 Stable with Low ESR Ceramic Output Capacitors
 Input under voltage lockout
 Short circuit protection
 Thermal Shutdown
 Inrush Current Limit and Soft Start
 -40°C to +125°C Temperature Range
■ Applications
 Distributed Power Systems
 Automotive Systems
 High Voltage Power Convertion
 Industrial Power Systems
 Battery Powered Systems
