JXP8205MRG
20V Dual N-Channel Enhancement Mode MOSFET
The JXP8205MRG uses advanced trench
technology to provide excellent RDS(ON), low gate
charge and high density cell Design for ultra low
on-resistance. This device is suitable for use as
a load switch or in PWM applications.
DESCRIPTION
The JXP8205MRG uses advanced trench technology to provide excellent RDS(ON), low gate charge and high density cell Design for ultra low on-resistance. This device is suitable for use as a load switch or in PWM applications.
GENERAL FEATURES

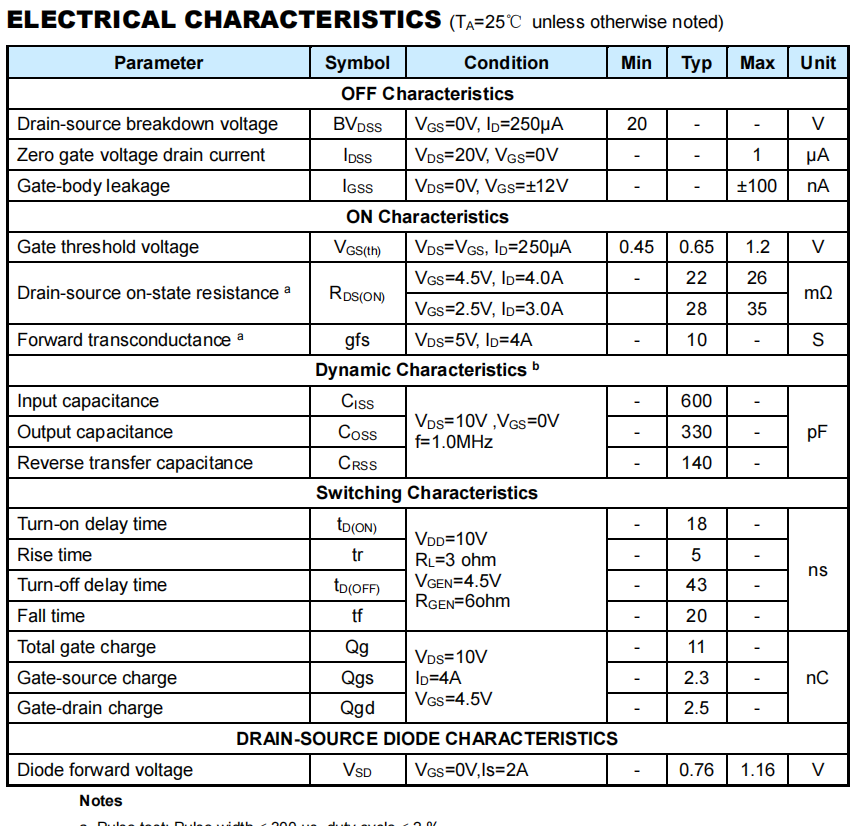

VDS =20V,ID =4A RDS(ON)(Typ.)=28mΩ @VGS=2.5V RDS(ON)(Typ.)=22mΩ @VGS=4.5V
High power and current handing capability
Lead free product is acquired

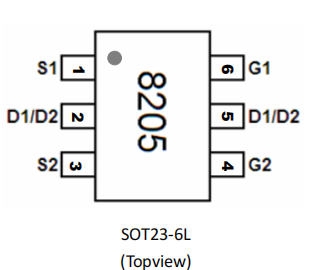

Surface mount package
APPLICATION
PWM applications
Load switch
