ZB25VQ32

3V 32M-BIT SERIAL NOR FLASH WITH DUAL AND QUAD SPI&QPI
The ZB25VQ32 of non-volatile flash memory device supports the standard Serial Peripheral Interface (SPI). Traditional SPI single bit serial input and output (Single I/O or SIO) is supported as well as optional two bit (Dual I/O or DIO) and four bit (quad I/O or QIO) serial protocols. This multiple width interface is called SPI Multi-I/O or MIO.
 Low power supply operation
- Single 2.3V-3.6V supply
 32 Mbit Serial Flash
- 32 M-bit/4M-byte/16,384 pages
- 256 bytes per programmable page
- Uniform 4K-byte Sectors, 32K/64K-byte Blocks
 New Family of SpiFlash Memories
- Standard SPI: CLK, CS#, DI, DO, WP#, HOLD# / RESET#
- Dual SPI: CLK, CS#, DI, DO, WP#, HOLD# / RESET#
- Quad SPI: CLK, CS#, IO0, IO1, IO2, IO3
- QPI: CLK, CS#, IO0, IO1, IO2, IO3
- Software & Hardware Reset
- Auto-increment Read capability

        The ZB25VQ32 support the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI as well as  2-clocks instruction cycle Quad Peripheral Interface (QPI): Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 (WP#), and I/O3 (HOLD# / RESET#). SPI clock frequencies of up to 120MHz are supported  allowing equivalent clock rates of 240MHz (120MHz x 2) for Dual I/O and 416MHz (104MHz x 4) for Quad I/O  when using the Fast Read Dual/Quad I/O and QPI instructions. These transfer rates can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories. The Continuous Read Mode allows for efficient memory  access with as few as 8-clocks of instruction-overhead to read a 24-bit address, allowing true XIP (execute in  place) operation.
        A Hold pin, Write Protect pin and programmable write protection, with top or bottom array control, provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device ID and  SFDP Register, a 64-bit Unique Serial Number and three 256-bytes Security Registers.
        The ZB25VQ32 provides an ideal storage solution for systems with limited space, signal connections,  and power. These memories' flexibility and performance is better than ordinary serial flash devices. They are  ideal for code shadowing to RAM, executing code directly (XIP), and storing reprogrammable data.

FEATURES
Low power supply operation
- Single 2.3V-3.6V supply
32 Mbit Serial Flash
- 32 M-bit/4M-byte/16,384 pages
- 256 bytes per programmable page
- Uniform 4K-byte Sectors, 32K/64K-byte Blocks
New Family of SpiFlash Memories
- Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#  / RESET#
- Dual SPI: CLK, CS#, DI, DO, WP#, HOLD# /  RESET#
- Quad SPI: CLK, CS#, IO0, IO1, IO2, IO3 - QPI: CLK, CS#, IO0, IO1, IO2, IO3
- Software & Hardware Reset - Auto-increment Read capability
Temperature Ranges
- Industrial (-40°C to +85°C)
- Extended (-20
°C to +85°C)
Low power consumption
- 9 mA typical active current
- 0.1 uA typical power down current
Efficient “Continuous Read” and QPI Mode
- Continuous Read with 8/16/32/64-Byte Wrap
- As few as 8 clocks to address memory
- Quad Peripheral Interface(QPI) reduces instruction overhead
Flexible Architecture with 4KB sectors
- Sector Erase (4K-bytes) - Block Erase (32K/64K-bytes)
- Page Program up to 256 bytes - More than 100K erase/program cycles
- More than 20-year data retention
Advanced Security Feature
- Software and Hardware Write-Protect
- Power Supply Lock-Down and OTP  protection
- Top/Bottom, Complement array protection
- 64-Bit Unique ID for each device
- Discoverable parameters(SFDP) register
- 3X256-Bytes Security Registers with OTP  locks
- Volatile & Non-volatile Status Register Bits
High performance program/erase speed
- Page program time: 350us typical
- Sector erase time: 30ms typical
- Block erase time: 200ms typical
- Chip erase time: 12s typical

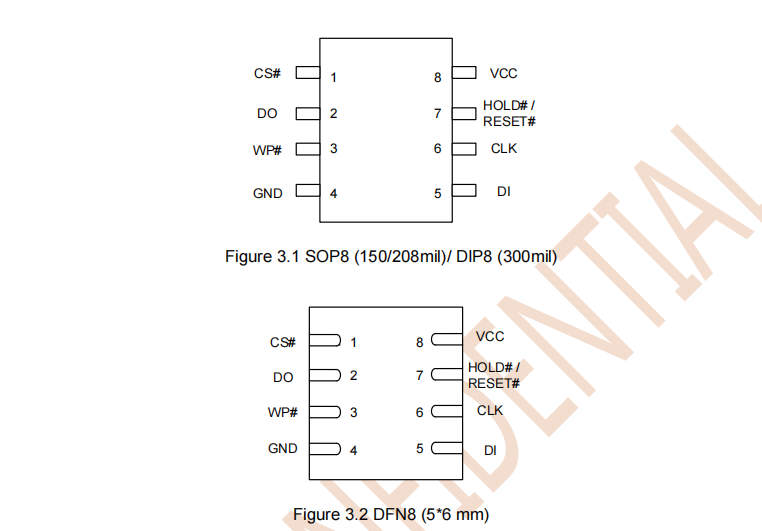

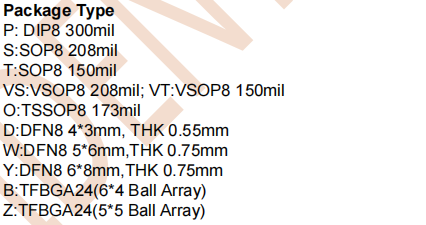

Package Options
- SOP8 - 150mil/208mil
- DFN8 (4*3*0.55mm)
- TFBGA24
- All Pb-free packages are RoHS compliant
